Faceplate Builder




Listed are all products that use 12 Sw. Chevy School Bus, MicroLine:

Required On All Starcraft School Buses.

RCT-01712-00000 (Junction Box, Fifteen Conductor)

DAT-01350-00030 (Fifteen Conductor, 36 Inches Long)

DAT-01350-00200 (15 Conductor, 17.5 Feet Long)

Required with "WheelChair Lift"

RCT-01460-00000 ADA Display

DAT-01348-00200 (eight conductor, twenty foot)

Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 4

Switch 5

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2

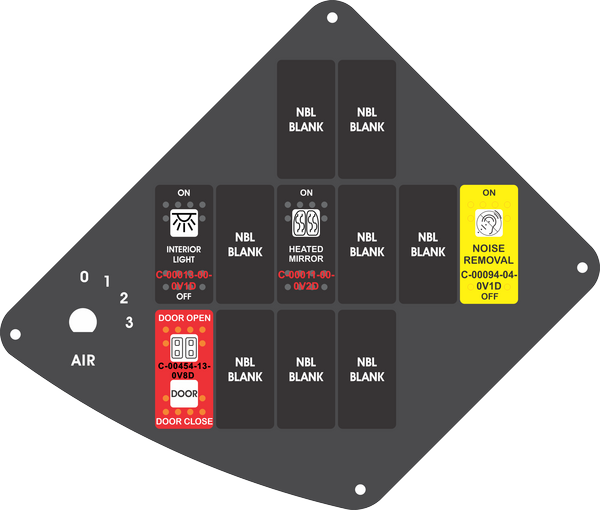

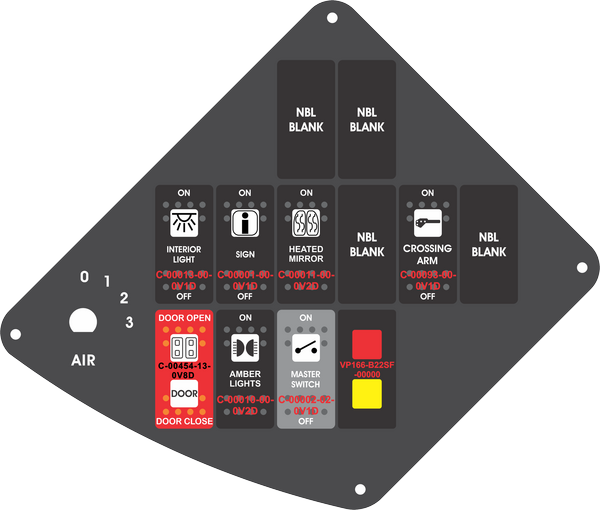

Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__00 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-12006 (10Conductor)
   Part #: DAT-01349-12006
Documents: DAT-01349-12006, Ten Conductor Data Cable.pdf


Ten conductor cable, four inches long.

Tyco Ten Pin Connector.

Mate-N-Loc, Yellow and White wires.

Wire Nut connects Blue, Grey, operates Aux. 3.

Mate-N-Loc operates relays Aux. 1 & Aux. 2 with, "IGNITION", on RCT-01490 or RCT-01507, Bus Power Center, connects to J3 on RCT-01544, Dash Switch Center.


Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 9

Power Center 1

Power Center 2

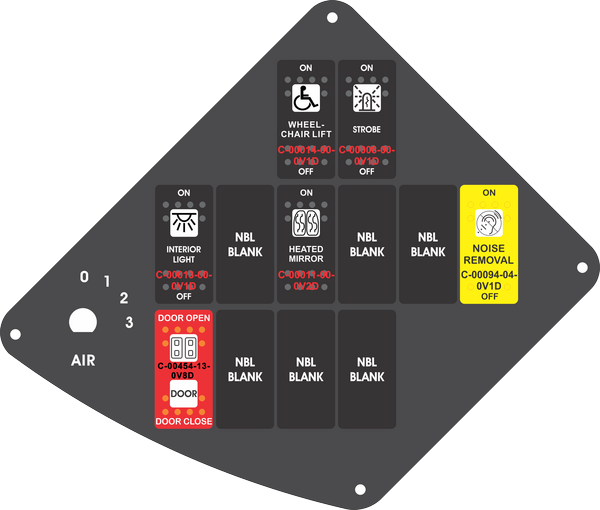

Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__01 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Cable 2 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17

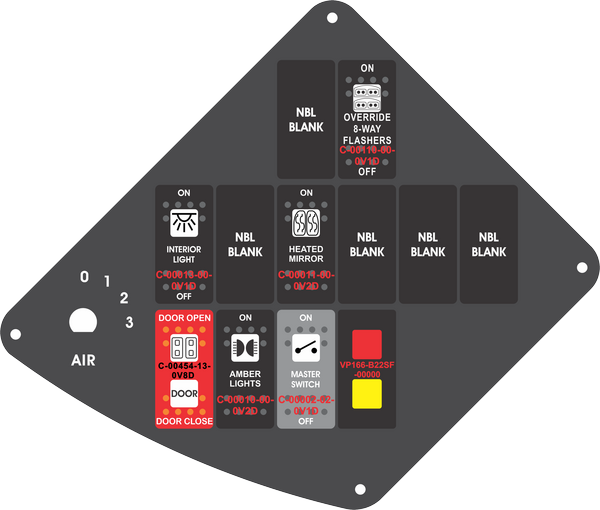

Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 5

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__02 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17

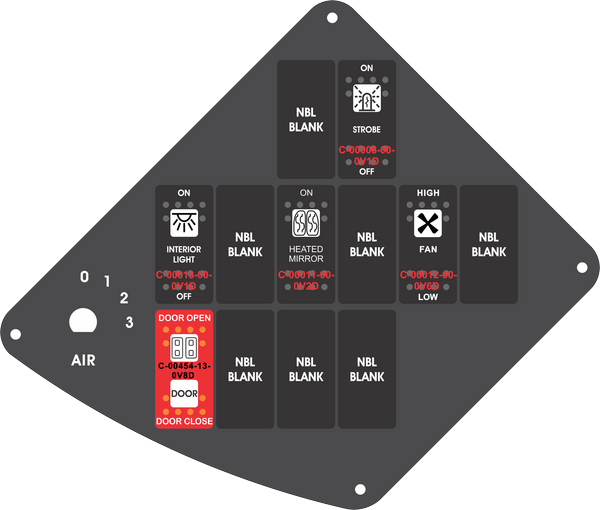

Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 9

Switch 10

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__03 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 3

Switch 4

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__04 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "REAR HEAT/HIGH-LOW" Black Switch Cap dual White Lens ON-OFF-ON
   Part #: C-00007-10-0V6D
Documents: C-00007-10-0V6D, Black Cap dual White Lens "REAR HEAT/ HIGH-LOW" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 3

Switch 4

Switch 5

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__05 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "REAR HEAT/HIGH-LOW" Black Switch Cap dual White Lens ON-OFF-ON
   Part #: C-00007-10-0V6D
Documents: C-00007-10-0V6D, Black Cap dual White Lens "REAR HEAT/ HIGH-LOW" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 3

Switch 8

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__06 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__07 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "CROSSING ARM" Black Switch Cap single White Lens ON-OFF
   Part #: C-00093-00-0V1D
Documents: C-00093-00-0V1D Black Cap single White Lens "Crossing Arm/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__08 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "STROBE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00008-00-0V1D
Documents: C-00008-00-0V1D Black Cap single White Lens "STROBE" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: "NOISE REMOVAL" Black Switch Cap single White Lens ON-OFF
   Part #: C-00094-00-0V1D
Documents: C-00094-00-0V1D Black Cap single White Lens "Noise Removal/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__09 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-12006 (10Conductor)
   Part #: DAT-01349-12006
Documents: DAT-01349-12006, Ten Conductor Data Cable.pdf


Ten conductor cable, four inches long.

Tyco Ten Pin Connector.

Mate-N-Loc, Yellow and White wires.

Wire Nut connects Blue, Grey, operates Aux. 3.

Mate-N-Loc operates relays Aux. 1 & Aux. 2 with, "IGNITION", on RCT-01490 or RCT-01507, Bus Power Center, connects to J3 on RCT-01544, Dash Switch Center.


Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 8

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__10 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "STROBE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00008-00-0V1D
Documents: C-00008-00-0V1D Black Cap single White Lens "STROBE" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "NOISE REMOVAL" Black Switch Cap single White Lens ON-OFF
   Part #: C-00094-00-0V1D
Documents: C-00094-00-0V1D Black Cap single White Lens "Noise Removal/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 8

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__11 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR-OPEN-CLOSE" Black Switch Cap dual White Lens (ON)-OFF-(ON)
   Part #: C-00009-10-0V8D
Documents: C-00009-10-0V8D, Black Cap dual White Lens "Open-Door-Close" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 4

Switch 5

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__12 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "CROSSING ARM" Black Switch Cap single White Lens ON-OFF
   Part #: C-00093-00-0V1D
Documents: C-00093-00-0V1D Black Cap single White Lens "Crossing Arm/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__13 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "VIDEO DVD" Black Switch Cap single White Lens ON-OFF
   Part #: C-00109-00-0V1D
Documents: C-00109-00-0V1D Black Switch Cap single White Lens "VIDEO DVD" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 7

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__14 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__15 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__16 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIREN BRAKE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00060-00-0V1D
Documents: C-00060-00-0V1D Black Cap single White Lens "Siren Brake/ On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 5

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__17 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__18 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "STROBE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00008-00-0V1D
Documents: C-00008-00-0V1D Black Cap single White Lens "STROBE" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 4

Switch 5

Switch 8

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__19 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 4

Switch 5

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__20 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "STROBE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00008-00-0V1D
Documents: C-00008-00-0V1D Black Cap single White Lens "STROBE" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 4

Switch 5

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__21 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__22 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "CROSSING ARM" Black Switch Cap single White Lens ON-OFF
   Part #: C-00093-00-0V1D
Documents: C-00093-00-0V1D Black Cap single White Lens "Crossing Arm/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 5

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__23 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 5

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__24 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-12006 (10Conductor)
   Part #: DAT-01349-12006
Documents: DAT-01349-12006, Ten Conductor Data Cable.pdf


Ten conductor cable, four inches long.

Tyco Ten Pin Connector.

Mate-N-Loc, Yellow and White wires.

Wire Nut connects Blue, Grey, operates Aux. 3.

Mate-N-Loc operates relays Aux. 1 & Aux. 2 with, "IGNITION", on RCT-01490 or RCT-01507, Bus Power Center, connects to J3 on RCT-01544, Dash Switch Center.


Switch 1 Name: Blank Switch

Switch 2 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 2

Switch 3

Switch 5

Switch 7

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__25 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "INTERIOR LIGHT REAR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00080-00-0V1D
Documents: C-00080-00-0V1D Black Cap single White Lens " Interior Light Rear/On-Off"pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: "CROSSING ARM" Black Switch Cap single White Lens ON-OFF
   Part #: C-00093-00-0V1D
Documents: C-00093-00-0V1D Black Cap single White Lens "Crossing Arm/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__26 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 7

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__27 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "STROBE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00008-00-0V1D
Documents: C-00008-00-0V1D Black Cap single White Lens "STROBE" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: "NOISE REMOVAL" Black Switch Cap single White Lens ON-OFF
   Part #: C-00094-00-0V1D
Documents: C-00094-00-0V1D Black Cap single White Lens "Noise Removal/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__28 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 5

Switch 7

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__29 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: "NOISE REMOVAL" Black Switch Cap single White Lens ON-OFF
   Part #: C-00094-00-0V1D
Documents: C-00094-00-0V1D Black Cap single White Lens "Noise Removal/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__30 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "NOISE REMOVAL" Black Switch Cap single White Lens ON-OFF
   Part #: C-00094-00-0V1D
Documents: C-00094-00-0V1D Black Cap single White Lens "Noise Removal/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 3

Switch 4

Switch 5

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__31 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 3

Switch 4

Switch 5

Switch 7

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__32 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "CROSSING ARM" Black Switch Cap single White Lens ON-OFF
   Part #: C-00093-00-0V1D
Documents: C-00093-00-0V1D Black Cap single White Lens "Crossing Arm/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 2

Switch 3

Switch 4

Switch 5

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__33 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: "STROBE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00008-00-0V1D
Documents: C-00008-00-0V1D Black Cap single White Lens "STROBE" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: "ENGINE HIGH IDLE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00083-00-0V1D
Documents: C-00083-00-0V1D Black Cap single White Lens " Engine High Idle/ On-Off" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 5

Switch 7

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__34 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: "NOISE REMOVAL" Black Switch Cap single White Lens ON-OFF
   Part #: C-00094-00-0V1D
Documents: C-00094-00-0V1D Black Cap single White Lens "Noise Removal/On-Off" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 4

Switch 5

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__35 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "AMBER CANCEL OFF" Black Switch Cap sinlge White Lens (ON)-OFF
   Part #: C-00121-00-0V2D
Documents: C-00121-00-0V2D Black Switch Cap sinlge White Lens "AMBER CANCEL OFF" (ON)-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 5

Switch 7

Switch 8

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__36 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: "STROBE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00008-00-0V1D
Documents: C-00008-00-0V1D Black Cap single White Lens "STROBE" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: Blank Legend

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 2

Switch 3

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__37 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: "OVERRIDE 8 WAY FLASHER" Black Switch Cap single White Lens ON-OFF
   Part #: C-00110-00-0V1D
Documents: C-00110-00-0V1D Black Switch Cap single White Lens "OVERRIDE 8 WAY FLASHER" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "WINDOW DEFROST" Black Switch Cap dual White Lens ON-OFF-ON
   Part #: C-00086-10-0V6D
Documents: C-00086-10-0V6D Black Cap dual White Lens "WindowDefrost/ High-Low".pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__38 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Blank Legend

Switch 5 Name: Black Switch Cap single White Len's, ON-OFF
   Part #: C-00000-00-0V1D
Documents: C-00000-00-0V1D, Black Switch Cap single White Len's


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 4

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__39 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "AMBER CANCEL OFF" Black Switch Cap sinlge White Lens (ON)-OFF
   Part #: C-00121-00-0V2D
Documents: C-00121-00-0V2D Black Switch Cap sinlge White Lens "AMBER CANCEL OFF" (ON)-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Blank Legend

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 4

Switch 5

Switch 7

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__40 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: "SIGN" Black Switch Cap single White Lens ON-OFF
   Part #: C-00001-00-0V1D
Documents: C-00001-00-0VD1 Black Switch Cap single White Lens "SIGN" ON-OFF.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary


   Switch 4 Legend: Blank Legend

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens ON-OFF
   Part #: C-00003-00-0V1D
Documents: C-00003-00-0V1D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 1

Switch 2

Switch 3

Switch 5

Switch 9

Switch 10

Switch 11

Switch 12

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__41 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "WHEELCHAIR LIFT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00014-00-0V1D
Documents: C-00014 -00-0V1D Black Cap single White Lens "WHEECHAIR LIFT" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: "STROBE" Black Switch Cap single White Lens ON-OFF
   Part #: C-00008-00-0V1D
Documents: C-00008-00-0V1D Black Cap single White Lens "STROBE" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: "AMBER LIGHTS" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00010-00-0V2D
Documents: C-00010-00-0V2D Black Cap single White Lens "AMBER LIGHTS" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 10 Legend: Blank Legend

Switch 11 Name: "MASTER SWITCH" Grey Switch Cap single White Lens ON-OFF
   Part #: C-00002-02-0V1D
Documents: C-00002-02-0VD1 Grey Cap single White Lens "MASTER SWITCH" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 11 Legend: Blank Legend

Switch 12 Name: "RED-AMBER-INDICATOR", VP166-B22SF-00000
   Part #: C-00000
Documents: Amber_Red_Indicator__VP166_B22SF_00000.pdf

   Switch 12 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1

Cable 2

Switch 3

Switch 5

Switch 7

Switch 9

Power Center 1

Power Center 2
Plate Name: 12 Sw. Chevy School Bus, MicroLine
   Part #: FAC-01681, Starcraft Bus by Forest River, Inc.
Documents: RCT-01681-0__42 Starcraft Chevy School Bus.pdf
Cable 1 Name: DAT-01349-06XXX (10 Conductor)
   Part #: DAT-01349-06XXX
Documents: DAT-01349-06XXX, Ten Conductor Data Cable.


Ten conductor, 24 awg.

Tyco Ten Pin Connector.

Other end open for user interface.



Cable 2 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: Blank Switch

Switch 2 Name: Blank Switch

Switch 3 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Blank Legend

Switch 4 Name: Blank Switch

Switch 5 Name: "HEATED MIRROR" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00011-00-0V2D
Documents: C-00011-00-0V2D Black Cap single White Lens "HEATED MIRROR" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: Blank Legend

Switch 6 Name: Blank Switch

Switch 7 Name: "FAN-HIGH-LOW" Black Switch Cap single White Lens ON-OFF-ON
   Part #: C-00012-00-0V6D
Documents: C-00012-00-0V6D Black Cap single White Lens "Fan-High-Low" pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 7 Legend: Blank Legend

Switch 8 Name: Blank Switch

Switch 9 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 9 Legend: Blank Legend

Switch 10 Name: Blank Switch

Switch 11 Name: Blank Switch

Switch 12 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Starcraft, Chevy School Bus

Faceplate

Plate

Cable 1
