Faceplate Builder




Listed are all products that use Federal Coach w/ Telma:

Federal Coach w/ Telma

Faceplate

Plate

Cable 1

Cable 2

Cable 3

Switch 1

Switch 2

Switch 8

Power Center 1

Power Center 2

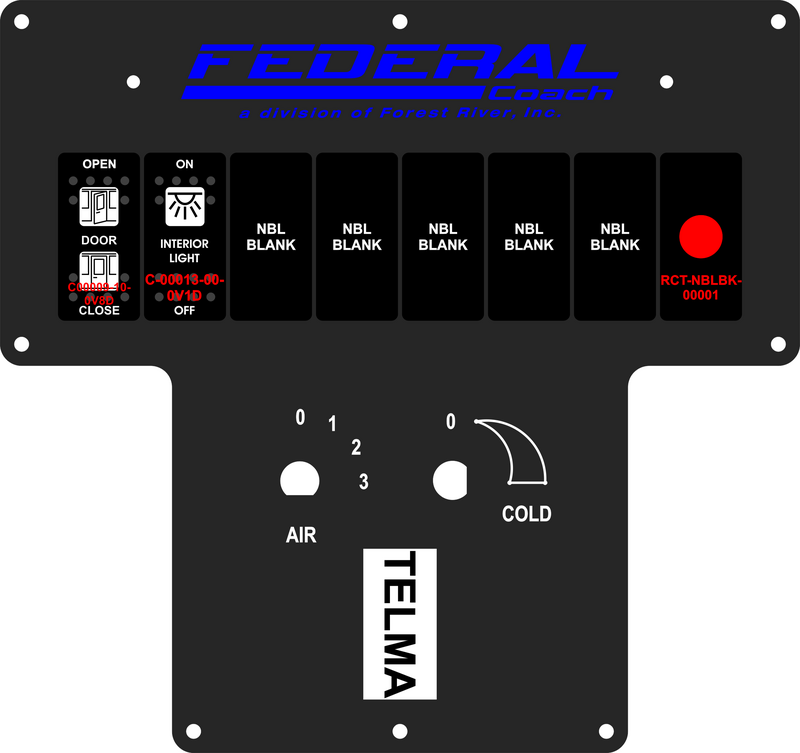

Plate Name: Federal Coach w/ Telma
   Part #: FAC-02034, Starcraft Bus by Forest River, Inc.
Documents: RCT-02034-0__00 Starcraft.pdf
Cable 1 Name: DAT-01345-03006 (2 Conductor)
   Part #: DAT-01345-03006
Documents: DAT-1345-03006, Two Conductor Data Cable.


Two Conductor 22 awg jacketed cable.

Tyco Three Pin Connector.

Mate-N-Loc, Black and Red wires.

Data Cable Operates Electric Door on Micro-Line Controllers.



Cable 2 Name: DAT-01345-06XX0 (2 Conductor)
   Part #: DAT-01345-06XX0
Documents: DAT-01345-06XX0, Two Conductor Data Cable.pdf


Two conductor data cable, 22 awg.

Tyco connector both ends.

Specify length.

Cable 3 Name: DAT-01349-14006 (10 Conductor)
   Part #: DAT-01349-14006
Documents: DAT-01349-14006 Ten Conductor Data Cable.pdf
   Operates Aux. 1, Aux. 2 and Heat.Switch 1 Name: "DOOR-OPEN-CLOSE" Black Switch Cap dual White Lens (ON)-OFF-(ON)
   Part #: C-00009-10-0V8D
Documents: C-00009-10-0V8D, Black Cap dual White Lens "Open-Door-Close" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Switch 2 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
   Part #: C-00013-00-0V1D
Documents: C-00013-00-0V1D Black Cap single White Lens "INTERIOR LIGHT" pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Blank Legend

Switch 3 Name: Blank Switch

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: NBL BLANK W/ RED SOLICO INDICATOR LIGHT
   Part #: RCT-NBLBK-00001
Documents: RCT-NBLBK-00001.pdf
   Solico 2935-1-11-37310 6 Inches Long insert into NBL Black Blank Switch
   Switch 8 Legend: Blank Legend

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17
