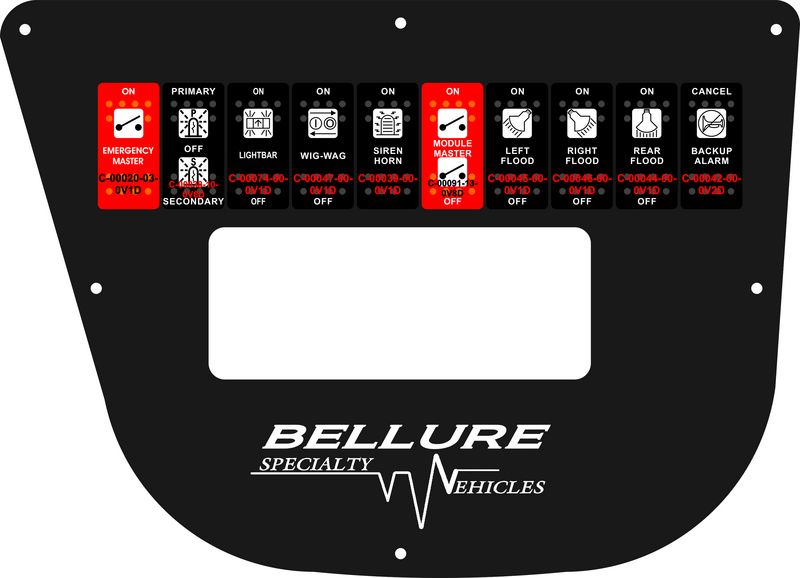

Faceplate Plate Switch 1 Switch 2 Switch 3 Switch 4 Switch 6 Switch 7 Switch 8 Switch 9 Switch 10 Power Center 1 | Plate Name: Ambulance Dash Switch Part #: FAC-02050, Ambulance Network Documents: RCT-02050-0__00 Ambulance Network.pdfSwitch 1 Name: "EMERGENCY MASTER" Red Switch Cap single White Lens ON-OFF Part #: C-00020-03-0V1D Documents: C-00020-03-0V1D
Red Cap single White Lens "EMERGENCY MASTER/ON" pdf
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
-
00 - Black Cap, single White Lens
-
01 - White Cap, single White Lens
-
02 - Grey Cap, single White Lens
-
03 - Red Cap, single White Lens
-
04 - Yellow Cap, single White Lens
-
05 - Green Cap, single White Lens
-
06 - Black Cap, single White Lens
-
10 - Black Cap, dual White Lens
-
12 - Grey Cap, dual White Lens
-
13 - Red Cap dual White Lens
-
14 - Yellow Cap, dual White Lens
-
15 - Green Cap, dual White Lens
-
16 - Black Cap, dual White Lens
-
20 - Rubber, Black Cap, single Orange Lens
-
23 - Rubber, Red Cap, single Orange Lens
-
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
-
0V1D - Carling Switch Body ON-OFF, Maintained
-
0V2D - Carling Switch Body, (ON)-OFF, Momentary
-
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
-
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
-
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary Switch 1 Legend: Blank Legend Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON Part #: C-00038-10-0V6D Documents: C-00038-10-0V6D
Black Cap dual White Lens "Primary Secondary/Off"pdf
