Faceplate
Plate
Switch 1
Switch 2
Switch 3
Switch 5
Switch 6
Switch 7
Switch 8
Switch 9
Switch 10
Power Center 1

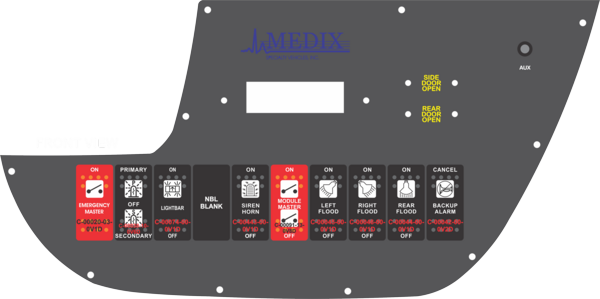

Plate Name: Ambulance Dash Switch
Part #: FAC-02397, Medix Specialty Vehicles, Inc.
Documents: Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Cable 3 Name: Blank Cable
Switch 1 Name: "EMERGENCY MASTER" Red Switch Cap single White Lens ON-OFF
Part #: C-00020-03-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 1 Legend: Blank Legend
Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON
Part #: C-00038-10-0V6D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 2 Legend: Blank Legend
Switch 3 Name: "LIGHTBAR" Black Switch Cap single White Lens ON-OFF
Part #: C-00074-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 3 Legend: Blank Legend
Switch 4 Name: Blank Switch
Switch 5 Name: "SIREN HORN" Black Switch Cap single White Lens ON-OFF
Part #: C-00443-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 5 Legend: Blank Legend
Switch 6 Name: "MODULE MASTER" Red Switch Cap dual White Lens (ON)-OFF-(ON)
Part #: C-00091-13-0V8D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 6 Legend: Blank Legend
Switch 7 Name: "LEFT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00045-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 7 Legend: Blank Legend
Switch 8 Name: "RIGHT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00046-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 8 Legend: Blank Legend
Switch 9 Name: "REAR FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00044-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 9 Legend: Blank Legend
Switch 10 Name: "CANCEL/ BACKUP ALARM" Black Switch Cap single White Lens (ON)-OFF
Part #: C-00042-00-0V2D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 10 Legend: Blank Legend
Power Center 1 Name: Ambulance Power Center, Type 2
Part #: RCT-01755-00000
Documents:
Faceplate
Plate
Switch 1
Switch 2
Switch 3
Switch 5
Switch 6
Switch 7
Switch 8
Switch 9
Switch 10
Power Center 1
Plate Name: Ambulance Dash Switch
Part #: FAC-02397, Medix Specialty Vehicles, Inc.
Documents: Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Cable 3 Name: Blank Cable
Switch 1 Name: "EMERGENCY MASTER" Red Switch Cap single White Lens ON-OFF
Part #: C-00020-03-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 1 Legend: Blank Legend
Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON
Part #: C-00038-10-0V6D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 2 Legend: Blank Legend
Switch 3 Name: "LIGHTBAR" Black Switch Cap single White Lens ON-OFF
Part #: C-00074-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 3 Legend: Blank Legend
Switch 4 Name: Blank Switch
Switch 5 Name: "SIREN HORN" Black Switch Cap single White Lens ON-OFF
Part #: C-00443-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 5 Legend: Blank Legend
Switch 6 Name: "MODULE MASTER" Red Switch Cap dual White Lens (ON)-OFF-(ON)
Part #: C-00091-13-0V8D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 6 Legend: Blank Legend
Switch 7 Name: "LEFT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00045-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 7 Legend: Blank Legend
Switch 8 Name: "RIGHT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00046-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 8 Legend: Blank Legend
Switch 9 Name: "REAR FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00044-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 9 Legend: Blank Legend
Switch 10 Name: "CANCEL/ BACKUP ALARM" Black Switch Cap single White Lens (ON)-OFF
Part #: C-00042-00-0V2D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 10 Legend: Blank Legend
Power Center 1 Name: Ambulance Power Center, Type 2
Part #: RCT-01755-00000
Documents:
Faceplate
Plate
Switch 1
Switch 2
Switch 3
Switch 4
Switch 5
Switch 6
Switch 7
Switch 8
Switch 9
Switch 10
Power Center 1
Plate Name: Ambulance Dash Switch
Part #: FAC-02397, Medix Specialty Vehicles, Inc.
Documents: Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Cable 3 Name: Blank Cable
Switch 1 Name: "EMERGENCY MASTER" Red Switch Cap single White Lens ON-OFF
Part #: C-00020-03-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 1 Legend: Blank Legend
Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON
Part #: C-00038-10-0V6D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 2 Legend: Blank Legend
Switch 3 Name: "LIGHTBAR" Black Switch Cap single White Lens ON-OFF
Part #: C-00074-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 3 Legend: Blank Legend
Switch 4 Name: "WIG-WAG" Black Switch Cap single White Lens ON-OFF
Part #: C-00047-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 4 Legend: Blank Legend
Switch 5 Name: "SIREN HORN" Black Switch Cap single White Lens ON-OFF
Part #: C-00443-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 5 Legend: Blank Legend
Switch 6 Name: "MODULE MASTER" Red Switch Cap dual White Lens (ON)-OFF-(ON)
Part #: C-00091-13-0V8D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 6 Legend: Blank Legend
Switch 7 Name: "LEFT FLOOD" White Switch Cap single White Lens ON-OFF
Part #: C-00045-01-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System OPTIONAL SWITCH CAPS 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 7 Legend: Blank Legend
Switch 8 Name: "RIGHT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00046-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 8 Legend: Blank Legend
Switch 9 Name: "REAR FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00044-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 9 Legend: Blank Legend
Switch 10 Name: "CANCEL/ BACKUP ALARM" Black Switch Cap single White Lens (ON)-OFF
Part #: C-00042-00-0V2D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 10 Legend: Blank Legend
Power Center 1 Name: Ambulance Power Center, Type 2
Part #: RCT-01755-00000
Documents:
Faceplate
Plate
Switch 1
Switch 2
Switch 3
Switch 5
Switch 6
Switch 7
Switch 8
Switch 9
Switch 10
Power Center 1
Plate Name: Ambulance Dash Switch
Part #: FAC-02397, Medix Specialty Vehicles, Inc.
Documents: Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Cable 3 Name: Blank Cable
Switch 1 Name: "EMERGENCY MASTER" Red Switch Cap single White Lens ON-OFF
Part #: C-00020-03-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 1 Legend: Blank Legend
Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON
Part #: C-00038-10-0V6D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 2 Legend: Blank Legend
Switch 3 Name: "LIGHTBAR" Black Switch Cap single White Lens ON-OFF
Part #: C-00074-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 3 Legend: Blank Legend
Switch 4 Name: Blank Switch
Switch 5 Name: "SIREN HORN" Black Switch Cap single White Lens ON-OFF
Part #: C-00443-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 5 Legend: Blank Legend
Switch 6 Name: "MODULE MASTER" Red Switch Cap dual White Lens (ON)-OFF-(ON)
Part #: C-00091-13-0V8D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 6 Legend: Blank Legend
Switch 7 Name: "LEFT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00045-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 7 Legend: Blank Legend
Switch 8 Name: "RIGHT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00046-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 8 Legend: Blank Legend
Switch 9 Name: "REAR FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00044-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 9 Legend: Blank Legend
Switch 10 Name: "CANCEL/ BACKUP ALARM" Black Switch Cap single White Lens (ON)-OFF
Part #: C-00042-00-0V2D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 10 Legend: Blank Legend
Power Center 1 Name: Ambulance Power Center, Type 2
Part #: RCT-01755-00000
Documents:
Faceplate
Plate
Switch 1
Switch 2
Switch 3
Switch 4
Switch 5
Switch 6
Switch 7
Switch 8
Switch 9
Switch 10
Power Center 1
Plate Name: Ambulance Dash Switch
Part #: FAC-02397, Medix Specialty Vehicles, Inc.
Documents: Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Cable 3 Name: Blank Cable
Switch 1 Name: "EMERGENCY MASTER" Red Switch Cap single White Lens ON-OFF
Part #: C-00020-03-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 1 Legend: Blank Legend
Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON
Part #: C-00038-10-0V6D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 2 Legend: Blank Legend
Switch 3 Name: "LIGHTBAR" Black Switch Cap single White Lens ON-OFF
Part #: C-00074-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 3 Legend: Blank Legend
Switch 4 Name: "FOG LIGHTS" Black Switch Cap single White Lens ON-OFF
Part #: C-00365-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System OPTIONAL SWITCH CAPS. 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 4 Legend: Blank Legend
Switch 5 Name: "SIREN HORN" Black Switch Cap single White Lens ON-OFF
Part #: C-00443-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 5 Legend: Blank Legend
Switch 6 Name: "MODULE MASTER" Red Switch Cap dual White Lens (ON)-OFF-(ON)
Part #: C-00091-13-0V8D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 6 Legend: Blank Legend
Switch 7 Name: "LEFT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00045-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 7 Legend: Blank Legend
Switch 8 Name: "RIGHT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00046-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 8 Legend: Blank Legend
Switch 9 Name: "REAR FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00044-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 9 Legend: Blank Legend
Switch 10 Name: "CANCEL/ BACKUP ALARM" Black Switch Cap single White Lens (ON)-OFF
Part #: C-00042-00-0V2D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 10 Legend: Blank Legend
Power Center 1 Name: Ambulance Power Center, Type 2
Part #: RCT-01755-00000
Documents:
Faceplate
Plate
Switch 1
Switch 2
Switch 3
Switch 4
Switch 5
Switch 6
Switch 7
Switch 8
Switch 9
Switch 10
Power Center 1
Plate Name: Ambulance Dash Switch
Part #: FAC-02397, Medix Specialty Vehicles, Inc.
Documents: Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Cable 3 Name: Blank Cable
Switch 1 Name: "EMERGENCY MASTER" Red Switch Cap single White Lens ON-OFF
Part #: C-00020-03-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 1 Legend: Blank Legend
Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON
Part #: C-00038-10-0V6D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 2 Legend: Blank Legend
Switch 3 Name: "LIGHTBAR" Black Switch Cap single White Lens ON-OFF
Part #: C-00074-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 3 Legend: Blank Legend
Switch 4 Name: "FOG LIGHTS" Black Switch Cap single White Lens ON-OFF
Part #: C-00365-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System OPTIONAL SWITCH CAPS. 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 4 Legend: Blank Legend
Switch 5 Name: "SIREN HORN" Black Switch Cap single White Lens ON-OFF
Part #: C-00443-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS 00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 5 Legend: Blank Legend
Switch 6 Name: "MODULE MASTER" Red Switch Cap dual White Lens (ON)-OFF-(ON)
Part #: C-00091-13-0V8D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 6 Legend: Blank Legend
Switch 7 Name: "LEFT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00045-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 7 Legend: Blank Legend
Switch 8 Name: "RIGHT FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00046-00-0V1D
Documents: RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 8 Legend: Blank Legend
Switch 9 Name: "REAR FLOOD" Black Switch Cap single White Lens ON-OFF
Part #: C-00044-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 9 Legend: Blank Legend
Switch 10 Name: "CANCEL/BACK UP ALARM" Black Switch Cap single White Lens ON-OFF
Part #: C-00042-00-0V1D
Documents: Switch 10 Legend: Blank Legend
Power Center 1 Name: Ambulance Power Center, Type 2
Part #: RCT-01755-00000
Documents:
Faceplate
Plate
Power Center 1
Plate Name: Ambulance Dash Switch
Part #: FAC-02397, Medix Specialty Vehicles, Inc.
Documents: Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Cable 3 Name: Blank Cable
Switch 1 Name: Blank Switch
Switch 2 Name: Blank Switch
Switch 3 Name: Blank Switch
Switch 4 Name: Blank Switch
Switch 5 Name: Blank Switch
Switch 6 Name: Blank Switch
Switch 7 Name: Blank Switch
Switch 8 Name: Blank Switch
Switch 9 Name: Blank Switch
Switch 10 Name: Blank Switch
Power Center 1 Name: Ambulance Power Center, Type 2
Part #: RCT-01755-00000
Documents:
Home
RCT-02397-0__00.pdf
