Faceplate Builder




Listed are all products that use Ambulance Dash Switch:

Emergency Vehicle Group, Inc. Ambulance Dash Switch

Faceplate

Plate

Switch 1

Switch 2

Switch 3

Switch 4

Switch 8

Switch 10

Switch 11

Switch 12

Switch 13

Power Center 1

Power Center 2

Power Center 3

Power Center 4

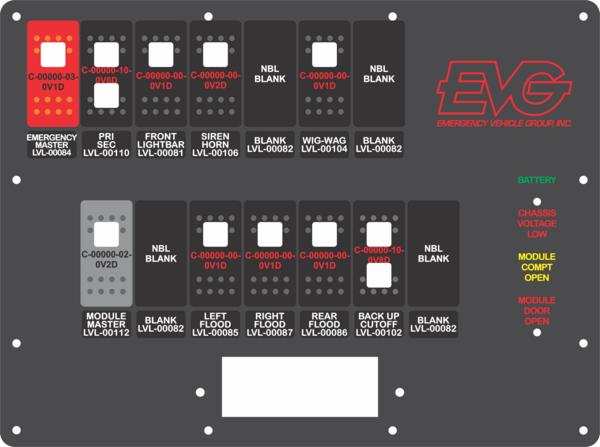

Plate Name: Ambulance Dash Switch
   Part #: FAC-02500, Emergency Vehicle Group, Inc.
Documents: RCT-02500-0__00, Emergency Vehicle Group, Inc, Dash Switch.pdf
Cable 1 Name: Blank Cable
Switch 1 Name: Red Switch Cap single White Lens ON-OFF
   Part #: C-00000-03- 0V1D
Documents: C-00000-03-0V1D Red Switch Cap single White Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend
