Faceplate Builder




Listed are all products that use 01 Switch:


Faceplate

Plate

Switch 1
Plate Name: 01 Switch
   Part #: FAC-02554, Peach State Ambulance, Inc. Fire Service
Documents: RCT-02554-0__00.pdf
Switch 1 Name: "TIMER"Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00625-00-0V2D
Documents: C-00625-00-0V2D TIMER.pdf

   Switch 1 Legend: Blank Legend

Power Center 1 Name: NO POWER CENTER
   Part #: RCT-XXXXX-XXXXX

Faceplate

Plate

Switch 1

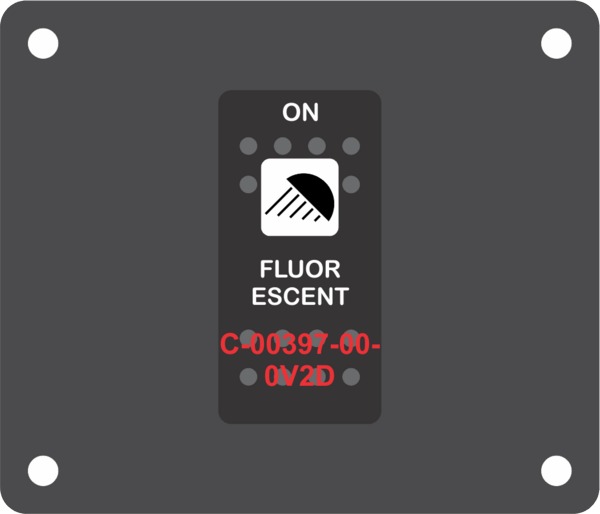

Plate Name: 01 Switch
   Part #: FAC-02554, Peach State Ambulance, Inc. Fire Service
Documents: RCT-02554-0__01.pdf
Switch 1 Name: "FLUORESCENT" Black Switch Cap single White Lens (ON)-OFF
   Part #: C-00397-00-0V2D
Documents: C-00397-00 FLUORESCENT (ON) OFF.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Blank Legend

Power Center 1 Name: NO POWER CENTER
   Part #: RCT-XXXXX-XXXXX
