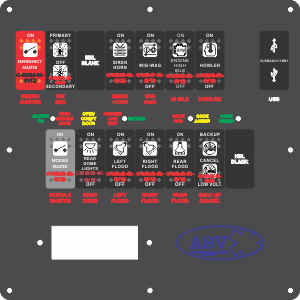

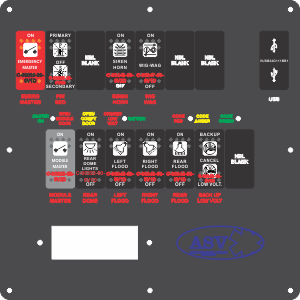

Plate Name: Ambulance Dash Switch
Part #: FAC-03241, Priority Emergency Vehicles
Documents: Cable 1 Name: Blank Cable
Switch 1 Name: "EMERGENCY MASTER" Red Switch Cap single White Lens ON-OFF
Part #: C-00020-03-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 1 Legend: Blank Legend
Switch 2 Name: "PRIMARY-SECONDARY" Black Switch Cap dual White Lens ON-OFF-ON
Part #: C-00038-10-0V6D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 2 Legend: Blank Legend
Switch 3 Name: Blank Switch
Switch 4 Name: "SIREN HORN" Black Switch Cap single White Lens (ON)-OFF
Part #: C-00443-00-0V2D
Documents: Switch 4 Legend: Blank Legend
