Faceplate Builder




Listed are all products that use 08 Sw. 09 Ford Microline:

Starcraft, DAT-01352-00200 (15 Conductor, 20 Foot)

Upper Std, MicroLine, Telma, Starcraft

Faceplate

Plate

Cable 2

Switch 1

Switch 3

Legend 3

Switch 4

Legend 4

Switch 5

Legend 5

Switch 6

Switch 8

Legend 8

Power Center 1

Power Center 2
Plate Name: 08 Sw. 09 Ford Microline
   Part #: FAC-01624, Starcraft Bus by Forest River, Inc.
Documents: RCT-01624-0__00 Starcraft Bus, Micro-Line.pdf
Cable 1 Name: Blank Cable
Cable 2 Name: DAT-01348-17006 (8 Conductor)
   Part #: DAT-01348-17006
Documents: DAT-01348-17006 Eight Conductor Data Cable.pdf


Eight conductor 22 awg., six inches long.

Tyco eight pin connector.

Mate-N-Loc three pin connector, Blue, Orange and yellow.

Wire Nut connects Black and Red wires.

Mate-N-Loc conector operates Heat, Aux. 1 & Aux. 2 on RCT-01490 or RCT-01507 from J3 on RCT-01492 or RCT-01493. Black & red operates Aux. 3 with "IGNITION".

Switch 1 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
   Part #: C-00454-13-0V8D
Documents: C-00454-13-0V8D RED Paddle.png


Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere

Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.


   Switch 1 Legend: Blank Legend

Switch 2 Name: Blank Switch

Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: SIGN
   Part #: L-00171

Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: Defroster Fan (Symbol)
   Part #: L-00185

Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 5 Legend: MASTER / SWITCH
   Part #: L-00161

Switch 6 Name: Black Switch Cap single Amber Lens (ON)-OFF
   Part #: C-00000-20-0V2D
Documents: C-00000-20-0V2D Black Cap single Amber Lens.pdf


RCT Switch Legend, Cap Type & Switch Body, Part Number System

  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 6 Legend: Blank Legend

Switch 7 Name: Blank Switch

Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 8 Legend: 2nd Rear Heater (Symbol)
   Part #: L-00187

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Upper Std, MicroLine, Telma, Starcraft

Faceplate

Plate

Cable 2

Switch 1

Legend 1

Switch 2

Legend 2

Switch 3

Legend 3

Switch 4

Legend 4

Power Center 1

Power Center 2

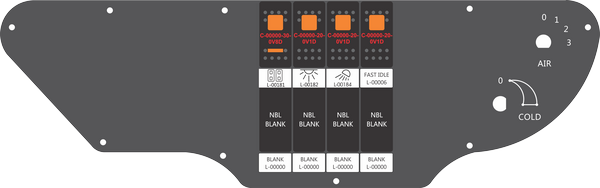

Plate Name: 08 Sw. 09 Ford Microline
   Part #: FAC-01624, Starcraft Bus by Forest River, Inc.
Documents: RCT-01624-0__01 Starcraft Bus, Micro-Line.pdf
Cable 1 Name: Blank Cable
Cable 2 Name: DAT-01348-17006 (8 Conductor)
   Part #: DAT-01348-17006
Documents: DAT-01348-17006 Eight Conductor Data Cable.pdf


Eight conductor 22 awg., six inches long.

Tyco eight pin connector.

Mate-N-Loc three pin connector, Blue, Orange and yellow.

Wire Nut connects Black and Red wires.

Mate-N-Loc conector operates Heat, Aux. 1 & Aux. 2 on RCT-01490 or RCT-01507 from J3 on RCT-01492 or RCT-01493. Black & red operates Aux. 3 with "IGNITION".

Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
   Part #: C-00000-30-0V8D
Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Entry Door (Symbol)
   Part #: L-00181

Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Interior Light (Symbol)
   Part #: L-00182

Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: HEATED / MIRROR
   Part #: L-00160

Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: FAST IDLE
   Part #: L-00006

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Upper Std, MicroLine, Telma, Starcraft

Faceplate

Plate

Cable 1

Switch 1

Legend 1

Switch 2

Legend 2

Power Center 1

Power Center 2
Plate Name: 08 Sw. 09 Ford Microline
   Part #: FAC-01624, Starcraft Bus by Forest River, Inc.
Documents: RCT-01624-0__02 Starcraft Bus, Micro-Line.pdf
Cable 1 Name: DAT-01348-17006 (8 Conductor)
   Part #: DAT-01348-17006
Documents: DAT-01348-17006 Eight Conductor Data Cable.pdf


Eight conductor 22 awg., six inches long.

Tyco eight pin connector.

Mate-N-Loc three pin connector, Blue, Orange and yellow.

Wire Nut connects Black and Red wires.

Mate-N-Loc conector operates Heat, Aux. 1 & Aux. 2 on RCT-01490 or RCT-01507 from J3 on RCT-01492 or RCT-01493. Black & red operates Aux. 3 with "IGNITION".

Cable 2 Name: Blank Cable
Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
   Part #: C-00000-30-0V8D
Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Entry Door (Symbol)
   Part #: L-00181

Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Interior Light (Symbol)
   Part #: L-00182

Switch 3 Name: Blank Switch

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Upper Std, MicroLine, Telma, Starcraft

Faceplate

Plate

Cable 2

Switch 1

Legend 1

Switch 2

Legend 2

Switch 3

Legend 3

Power Center 1

Power Center 2
Plate Name: 08 Sw. 09 Ford Microline
   Part #: FAC-01624, Starcraft Bus by Forest River, Inc.
Documents: RCT-01624-0__03 Starcraft Bus, Micro-Line.pdf
Cable 1 Name: Blank Cable
Cable 2 Name: DAT-01348-17006 (8 Conductor)
   Part #: DAT-01348-17006
Documents: DAT-01348-17006 Eight Conductor Data Cable.pdf


Eight conductor 22 awg., six inches long.

Tyco eight pin connector.

Mate-N-Loc three pin connector, Blue, Orange and yellow.

Wire Nut connects Black and Red wires.

Mate-N-Loc conector operates Heat, Aux. 1 & Aux. 2 on RCT-01490 or RCT-01507 from J3 on RCT-01492 or RCT-01493. Black & red operates Aux. 3 with "IGNITION".

Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
   Part #: C-00000-30-0V8D
Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Entry Door (Symbol)
   Part #: L-00181

Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Interior Light (Symbol)
   Part #: L-00182

Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: HEATED / MIRROR
   Part #: L-00160

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Upper Std, MicroLine, Telma, Starcraft

Faceplate

Plate

Cable 2

Switch 1

Legend 1

Switch 2

Legend 2

Switch 4

Legend 4

Power Center 1

Power Center 2
Plate Name: 08 Sw. 09 Ford Microline
   Part #: FAC-01624, Starcraft Bus by Forest River, Inc.
Documents: RCT-01624-0__04 Starcraft Bus, Micro-Line.pdf
Cable 1 Name: Blank Cable
Cable 2 Name: DAT-01348-17006 (8 Conductor)
   Part #: DAT-01348-17006
Documents: DAT-01348-17006 Eight Conductor Data Cable.pdf


Eight conductor 22 awg., six inches long.

Tyco eight pin connector.

Mate-N-Loc three pin connector, Blue, Orange and yellow.

Wire Nut connects Black and Red wires.

Mate-N-Loc conector operates Heat, Aux. 1 & Aux. 2 on RCT-01490 or RCT-01507 from J3 on RCT-01492 or RCT-01493. Black & red operates Aux. 3 with "IGNITION".

Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
   Part #: C-00000-30-0V8D
Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Entry Door (Symbol)
   Part #: L-00181

Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Interior Light (Symbol)
   Part #: L-00182

Switch 3 Name: Blank Switch

Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: FAST IDLE
   Part #: L-00006

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Upper Std, MicroLine, Telma, Starcraft

Faceplate

Plate

Switch 1

Legend 1

Switch 2

Legend 2

Switch 4

Legend 4

Switch 6

Legend 6

Power Center 1

Power Center 2
Plate Name: 08 Sw. 09 Ford Microline
   Part #: FAC-01624, Starcraft Bus by Forest River, Inc.
Documents: RCT-01624-0__05 Starcraft Bus, Micro-Line.pdf
Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
   Part #: C-00000-30-0V8D
Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Entry Door (Symbol)
   Part #: L-00181

Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Interior Light (Symbol)
   Part #: L-00182

Switch 3 Name: Blank Switch

Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: VIDEO
   Part #: L-00149

Switch 5 Name: Blank Switch

Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 6 Legend: FAST IDLE
   Part #: L-00006

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17



Upper Std, MicroLine, Telma, Starcraft

Faceplate

Plate

Switch 1

Legend 1

Switch 2

Legend 2

Switch 3

Legend 3

Power Center 1
Plate Name: 08 Sw. 09 Ford Microline
   Part #: FAC-01624, Starcraft Bus by Forest River, Inc.
Documents: RCT-01624-0__06 Starcraft Bus, Micro-Line.pdf
Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
   Part #: C-00000-30-0V8D
Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Entry Door (Symbol)
   Part #: L-00181

Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Interior Light (Symbol)
   Part #: L-00182

Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: FAST IDLE
   Part #: L-00006

Switch 4 Name: Blank Switch

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Upper Std, MicroLine, Telma, Starcraft

Faceplate

Plate

Switch 1

Legend 1

Switch 2

Legend 2

Switch 3

Legend 3

Switch 4

Legend 4

Power Center 1

Power Center 2
Plate Name: 08 Sw. 09 Ford Microline
   Part #: FAC-01624, Starcraft Bus by Forest River, Inc.
Documents: RCT-01624-0__07 Starcraft.pdf
Cable 1 Name: Blank Cable
Cable 2 Name: Blank Cable
Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
   Part #: C-00000-30-0V8D
Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 1 Legend: Entry Door (Symbol)
   Part #: L-00181

Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 2 Legend: Interior Light (Symbol)
   Part #: L-00182

Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 3 Legend: Reading Light (Symbol)
   Part #: L-00184

Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
   Part #: C-00000-20-0V1D
Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
   RCT Switch Legend, Cap Type & Switch Body, Part Number System
  • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
OPTIONAL SWITCH CAPS.
  • 00 - Black Cap, single White Lens
  • 01 - White Cap, single White Lens
  • 02 - Grey Cap, single White Lens
  • 03 - Red Cap, single White Lens
  • 04 - Yellow Cap, single White Lens
  • 05 - Green Cap, single White Lens
  • 06 - Black Cap, single White Lens
  • 10 - Black Cap, dual White Lens
  • 12 - Grey Cap, dual White Lens
  • 13 - Red Cap dual White Lens
  • 14 - Yellow Cap, dual White Lens
  • 15 - Green Cap, dual White Lens
  • 16 - Black Cap, dual White Lens
  • 20 - Rubber, Black Cap, single Orange Lens
  • 23 - Rubber, Red Cap, single Orange Lens
  • 30 - Rubber Black Cap, dual Orange Lens

OPTIONAL CARLING SWITCH BODYS.

  • 0V1D - Carling Switch Body ON-OFF, Maintained
  • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
  • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
  • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
  • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

   Switch 4 Legend: FAST IDLE
   Part #: L-00006

Switch 5 Name: Blank Switch

Switch 6 Name: Blank Switch

Switch 7 Name: Blank Switch

Switch 8 Name: Blank Switch

Power Center 1 Name: Bus Power Ctr., MicroLine, Plug-In-Play
   Part #: RCT-01490-00000
Documents: RCT-01490-00000 MircoLine Bus Power Center.


Bus Power Center, MicroLine

 Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP -  F1, 2, 4, 11, 14-16, 18-20

15 AMP -  F3, 5-7, 10, 13

20 AMP -  F8-9, 12

25 AMP - F17





Power Center 2 Name: Bus Pwr, ADA, Ctr, MicroLine, PlugInPlay
   Part #: RCT-01507-00001
Documents: RCT-01507-00001 Bus Power Ctr., ADA, MicroLine, Plug-In-Play.


Bus Power Center, MicroLine, ADA and Stop Request.

Requires front switch assembly, PCB-01492 or PCB-01493.

Requires fifteen Conductor data cable, DAT-01350-00XX0.

Fuses:

10 AMP- F1-2, 4, 11, 14-16, 18-20

15 AMP - F3, 5-7, 10, 13

20 AMP - F8-9, 12

25 AMP - F17
