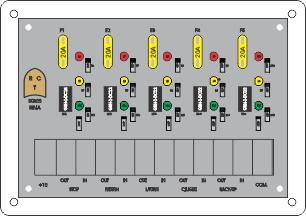

Five Power Relay Control, 12 VDC at 30 ampere, Power relays active with 140 ma, ground.

Also provides a negative output when any one of the outputs is active.

Often used in "Compartment Light", applications.

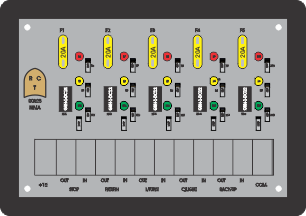

Five Power Relay Control, 12 VDC at 30 ampere, Power relays active with 140 ma, ground.

Also provides a positive output when any one of the outputs is active.

Often used in "Compartment Light", applications.

 FUSES

3 - 10amp

1 - 7.5amp

1 - 5amp

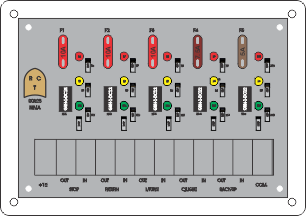

Five Power Relay Control, 12 VDC at 30 ampere, Power relays active with 140 ma, ground.

Also provides a positive output when any one of the outputs is active.

Often used in "Compartment Light", applications..

FUSES

5 - 20AMP

Five Power Relay Control, 12 VDC at 30 ampere, Power relays active with 140 ma, ground.

Also provides a positive output when any one of the outputs is active.

Often used in "Compartment Light", applications.

 FUSES

3 - 10amp

1 - 7.5amp

1 - 5amp

Five Power Relay Control, 12 VDC at 30 ampere, Power relays active with 140 ma, ground.

Also provides a positive output when any one of the outputs is active.

Often used in "Compartment Light", applications.

 FUSES

3 - 10amp

1 - 7.5amp

1 - 5amp

AC Voltage, Ampereage and Frequency Meters.

GM park brake interface cable. Unplug connector from switch and install cable. Provides negative signal from park brake.

Unplug unlock solenoid and replace with this cable. Provide +12vdc power and shift will remain locked and in park.

Locks GMC Chevy S-45 or S55 Shift Lock. Requires RCT-01414 or RCT-01507 Power Center to provide interlock.

Switch 57145-030

Magnet 59145-000

Heating and cooling switch assembly.

Complete system requires RCT-00728-00000 and data cable DAT-01348-00XX0. (XX determines length).

High Idle and Park Module For Ford E & F 250, 350, 450 and 550.

(See Connection Diagrams for E or F series.)

Additional cables required:

DAT-01345-01XXX, User Interface "Transmission In Park" (2 Conductor)

DAT-01347-01XXX, User Interface.  (4 Conductor)

DAT-01376-01XXX, Chasis Interface.  (6 Conductor)

X = Inches of cable required. (First Digit, right to left.)

XX = Feet of cable required. (Second & Third Digit, Right to left.)

Starcraft requires DAT-01347-01010 & DAT-01376-01010.

Used to operate a 12 VDC up to 5 ampere. Is operated with a ground input. (15 ma sink)
