| Documents:
RCT-01748-00000 Air Conditioner Control.pdfFAN SPEED +12 VDC. Provides power to all fan speeds, high, medium and low.
CONDENSER +12 VDC. Provides power to clutch and condenser.
Fan High "coil" input 12 VDC @ .150 ampere. Output 70 ampere @ 12 VDC. Protected with fuse or circuit breaker F1
Fan Medium "coil" input 12 VDC @ .05 ampere. Output 30 ampere @ 12 VDC. Protected with fuse or circuit breaker F2.
Fan Low "coil" input 12 VDC @ .05 ampere. Output 30 ampere @ 12 VDC. Protected with fuse or circuit breaker F3.
Clutch "coil" input 12 VDC @ .05 ampere. Output 30 ampere @ 12 VDC. Protected with fuse or circuit breaker F4.
Condenser "coil" input 12 VDC @ .150 ampere. Output 70 ampere @ 12 VDC. Protected with fuse or circuit breaker F5.
NOTE: Negative connection with 16 AWG.
NOTE: Size all conductors to accommodate all loads and supply feeders.
NOTE: When condenser fuse opens the clutch output will be removed. |
|
| KIT-01755-00000 Includes the following:
RCT-01755-00000 Plug-N-Play Power Center.
RCT-01894-00700 Dash 10 Switch Panel Staged Lighting.
RCT-01895-00700 Patient 12 Switch Panel Staged Lighting.
DAT-01350-00200 Dash Panel to Power Center.
DAT-01758-00150 Patient Panel to Power Center.
DAT-01757-00200 A/C Heat Fan Switch to Thermostat.
DAT-01345-07200 Door Open Indicator to Power Center.
DAT-01347-01020 Power Center to ABC Body Flasher.
DAT-01348-01820 Dash Code Light to Patient Panel Code Switch.
RCT-MOLEX-00011 Molex Connector Kit; complete for harness wires |
|
| KIT-01755-00001 Includes the following:
RCT-01755-00000 Plug-N-Play Power Center.
RCT-01940-00700 Dash 11 Switch Panel Staged Lighting.
RCT-01935-00700 Patient 14 Switch Panel Staged Lighting.
DAT-01350-00200 Dash Panel to Power Center.
DAT-01758-00150 Patient Panel to Power Center.
DAT-01757-00200 A/C Heat Fan Switch to Thermostat.
DAT-01345-07200 Door Open Indicator to Power Center .
DAT-01347-01020 Power Center to ABC Body Flasher.
DAT-01348-00200 Dash Code Light to Patient Panel Code Switch.
RCT-MOLEX-00011 Molex Connector Kit; complete for harness wires. |
|
| Documents:
RCT-00498-00000 Sequence, Eight Zone.This is a daughter control which plugs into the mother board, PCB-00745, Dash Switch.
Requires fifteen Conductor data cable, DAT-01350-00006. |
|
| Documents:
RCT-01563-00000 Ambulance, Aux. Power Card.Adds four circuits to the Ambulance Power Center, RCT-01479.
When ordering this control the switching (RCT-01564) must be ordered as well. Switches that can be used. "ON-OFF-ON" or "ON-OFF". Either maintained or momentary. When using "ON-OFF-ON" switch , two of the four power relays on the Aux. Power Card, RCT-01563 will be used. |
|
| Documents:
RCT-00772, ABC Body Flasher.Ambulance Body Flasher, ABC.
Connects to J3 of Ambulance Power Center RCT-00743, Barrier Strip or RCT-01479, Plug-In-Play.
Please order data cable, DAT-01346-00XX0, "XX" determines lenght in feet.
COPY & PASTE", DAT-01346-00XX0 into, SEARCH, for rapid locate and selection of data cable. |
|
| Documents:

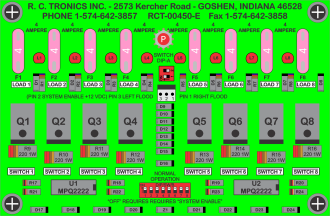

RCT-00450-00000 External Compartment Control.External Compartment Light Control, Eight Zone.
Connects to J4 of Ambulance Power Center RCT-00743, Barrier Strip or RCT-01479, Plug-In-Play.
Please order 3 conductor data cable, DAT-01346-00XX0, "XX" determines lenght in feet.
COPY & PASTE", DAT-01346-00XX0 into, SEARCH, for rapid locate and selection of data cable. |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| Documents:
RCT-01662 Automatic Ignition Lock.pdf
Control allows engine operation with ignition key removed.
Momentairy depressing "ARM" switch bypasses the ignition switch and permits ignition key removal.
An unauthorized operator operating the "BRAKE" will reset the control causing the engine to stop.
Additionally a set of form C "ALARM CONTACTS" will operate which may be connected to a horn or siren.
Reset is accomplished with "SILENCE" switch. |
|
| |
|
| |
|
| |
|
| |
