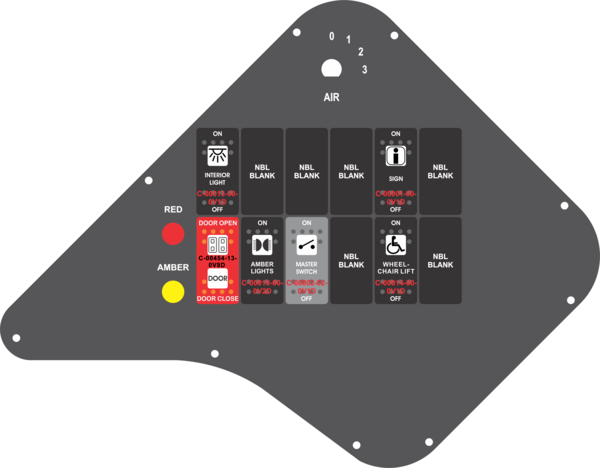

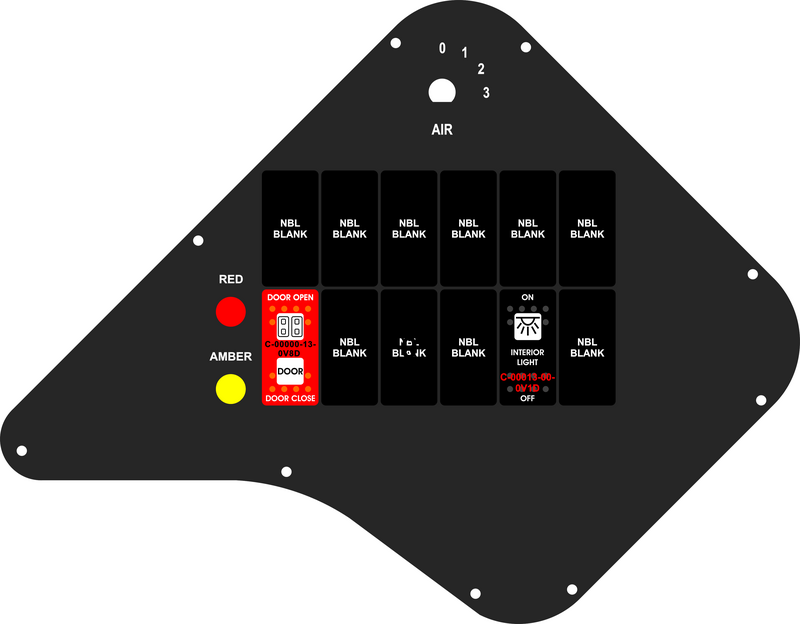

Faceplate
Plate
Switch 7
Switch 11
Power Center 2
Plate Name: Ford School Bus
Part #: FAC-01923, Starcraft Bus by Forest River, Inc.
Documents: Switch 1 Name: Blank Switch
Switch 2 Name: Blank Switch
Switch 3 Name: Blank Switch
Switch 4 Name: Blank Switch
Switch 5 Name: Blank Switch
Switch 6 Name: Blank Switch
Switch 7 Name: "DOOR SYMBOL" Red Paddle Cap (ON)OFF(ON)
Part #: C-00454-13-0V8D
Documents: Carling Super Bright Black ON/OFF, 12 VDC, 20 Ampere
Momentary, Paddle, Red "DOOR" Symbol (L-00181) symbol on White Lens.
Switch 7 Legend: Blank Legend
Switch 8 Name: Blank Switch
Switch 9 Name: Blank Switch
Switch 10 Name: Blank Switch
Switch 11 Name: "INTERIOR LIGHT" Black Switch Cap single White Lens ON-OFF
Part #: C-00013-00-0V1D
Documents:
RCT Switch Legend, Cap Type & Switch Body, Part Number System
OPTIONAL SWITCH CAPS.
00 - Black Cap, single White Lens
01 - White Cap, single White Lens
02 - Grey Cap, single White Lens
03 - Red Cap, single White Lens
04 - Yellow Cap, single White Lens
05 - Green Cap, single White Lens
06 - Black Cap, single White Lens
10 - Black Cap, dual White Lens
12 - Grey Cap, dual White Lens
13 - Red Cap dual White Lens
14 - Yellow Cap, dual White Lens
15 - Green Cap, dual White Lens
16 - Black Cap, dual White Lens
20 - Rubber, Black Cap, single Orange Lens
23 - Rubber, Red Cap, single Orange Lens
30 - Rubber Black Cap, dual Orange Lens
OPTIONAL CARLING SWITCH BODYS.
0V1D - Carling Switch Body ON-OFF, Maintained
0V2D - Carling Switch Body, (ON)-OFF, Momentary
0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
0V6D - Carling Switch Body, ON-OFF-ON, Maintained
0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary
Switch 11 Legend: Blank Legend
Switch 12 Name: Blank Switch
Power Center 2 Name: School Bus Distribution Center
Part #: RCT-02015-00000
Documents: Required data cable DAT-01352-00XX0 ( 30 conductor) Please determine length.
