    Faceplate Builder

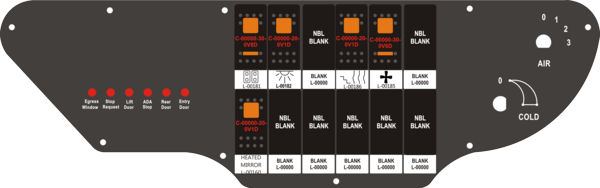

    Listed are all products that use 12 Sw. 09 Ford w/System Display:

    Starcraft, DAT-01352-00200 (30 Conductor, 20 Foot)

    Identical Faceplate with Carling Dimmer FAC-01720

    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__00 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Blank Switch

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__01 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: FLOOR / LIGHTS
       Part #: L-00073

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__02 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 9

    Legend 9

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__03 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Blank Switch

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 9 Legend: HEAT / COOL
       Part #: L-00102

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 2

    Legend 2

    Switch 3

    Legend 3

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__04 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 3 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 4 Name: Blank Switch

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__05 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__06 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__07 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: ENTRY / DOOR
       Part #: L-00156

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Lights
       Part #: L-00232

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: READING / LIGHTS
       Part #: L-00018

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: HEATED / STEP
       Part #: L-00159

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 9

    Legend 9

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__08 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Blank Switch

    Switch 2 Name: Blank Switch

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 9 Legend: CLIMATE / CONTROL
       Part #: L-00138

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__09 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__10 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: SIGN
       Part #: L-00171

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__11 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__12 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__13 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: ROUTE
       Part #: L-00255

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__14 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__15 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: POWER / VENT
       Part #: L-00094

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__16 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: FLUORESCENT / LIGHTS
       Part #: L-00080

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 11

    Legend 11

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__17 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 11 Legend: FLASHER
       Part #: L-00046

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__18 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 3

    Legend 3

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 11

    Legend 11

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__19 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 3 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 11 Legend: FLUORESCENT / LIGHTS
       Part #: L-00080

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__20 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 11

    Legend 11

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__21 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 11 Legend: FLASHER
       Part #: L-00046

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__22 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: FLUORESCENT / LIGHTS
       Part #: L-00080

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__23 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 9

    Legend 9

    Switch 10

    Legend 10

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__24 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 9 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 10 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 10 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__25 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: POWER / VENT
       Part #: L-00094

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 11

    Legend 11

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__26 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: POWER / VENT
       Part #: L-00094

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 11 Legend: FLASHER
       Part #: L-00046

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 11

    Legend 11

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__27 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: FLUORESCENT / LIGHTS
       Part #: L-00080

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: POWER / VENT
       Part #: L-00094

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 11 Legend: VIDEO
       Part #: L-00149

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__28 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: FLUORESCENT / LIGHTS
       Part #: L-00080

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: POWER / VENT
       Part #: L-00094

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__29 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: FLUORESCENT / LIGHTS
       Part #: L-00080

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: POWER / VENT
       Part #: L-00094

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__30 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__31 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: FLUORESCENT / LIGHTS
       Part #: L-00080

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Cable 1

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__32 Starcraft Bus.pdf
    Cable 1 Name: DAT-01349-17006 (10 Conductor)
       Part #: DAT-01349-17006
    Documents: DAT-01349-17006, Ten Conductor Data Cable.pdf


    Ten conductor cable, six inches long.

    Tyco Ten Pin Connector.

    Mate-N-Loc, Black, Red & Violet wires.

    Mate-N-Loc operates relays 6A, 6B & 7B with, "IGNITION", on RCT-00786 or RCT-01414, Bus Power Center, connects to J4 on RCT-01083, Dash Switch Center.

    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: FLUORESCENT / LIGHTS
       Part #: L-00080

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__33 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__34 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__35 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__36 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__37 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__38 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: POWER / VENT
       Part #: L-00094

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__39 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__40 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__41 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 3

    Legend 3

    Switch 4

    Legend 4

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__42 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 3 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 3

    Legend 3

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__43 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 3 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 4 Name: Blank Switch

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__44 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 3

    Legend 3

    Switch 4

    Legend 4

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__45 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 3 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__46 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Blank Legend

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Switch 9

    Legend 9

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__47 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 9 Legend: POWER / VENT
       Part #: L-00094

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__48 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: VIDEO
       Part #: L-00149

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__49 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__50 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__51 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 12

    Legend 12

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__52 Starcraft Bus..pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: POWER / VENT
       Part #: L-00094

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: FOG / LIGHTS
       Part #: L-00091

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 12 Legend: FLASHER
       Part #: L-00046

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__53 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__54 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Blank Switch

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__55 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: VIDEO
       Part #: L-00149

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__56 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: POWER / VENT
       Part #: L-00094

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__57 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__58 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: HEAT / COOL
       Part #: L-00102

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: Blank Legend

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__59 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEAT / COOL
       Part #: L-00102

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__60 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: HEAT / COOL
       Part #: L-00102

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__61 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: FLOOR / LIGHTS
       Part #: L-00073

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__62 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: POWER / VENT
       Part #: L-00094

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: FOG / LIGHTS
       Part #: L-00091

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__63 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__64 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__65 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Switch 6

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__66 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Blank Legend

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: Blank Legend

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEAT / COOL
       Part #: L-00102

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__67 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: FLASHER
       Part #: L-00046

    Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: EXTERNAL / P.A.
       Part #: L-00165

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Switch 9

    Legend 9

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__68 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 9 Legend: VIDEO
       Part #: L-00149

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__69 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__70 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    Power Center 2 Name: NO POWER CENTER
       Part #: RCT-XXXXX-XXXXX
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Switch 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__71 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Blank Legend

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: Blank Legend

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Switch 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__72 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Blank Legend

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: Blank Legend

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: HEAT / COOL
       Part #: L-00102

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__73 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: AUX. / POWER
       Part #: L-00151

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: AUX. / POWER
       Part #: L-00151

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEAT / COOL
       Part #: L-00102

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 11

    Legend 11

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__74 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 11 Legend: FLASHER
       Part #: L-00046

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__75 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: POWER / VENT
       Part #: L-00094

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Switch 11

    Legend 11

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__76 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: VIDEO
       Part #: L-00149

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 11 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__77 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: STOP REQUEST
       Part #: L-00175

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__78 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: VIDEO
       Part #: L-00149

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Yellow Switch Cap single White Lens ON-OFF
       Part #: C-00000-04-0V1D
    Documents: C-00000-04-0V1D, Yellow Switch Cap single White Len's.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: NOISE / REMOVAL
       Part #: L-00245

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__79 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Blank Switch

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__80 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Blank Switch

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__81 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Blank Switch

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: HEAT / COOL
       Part #: L-00102

    Switch 6 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__82 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Stop Request (Symbol)
       Part #: L-00191

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__83 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__84 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: STROBE
       Part #: L-00068

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 11

    Legend 11

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__85 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: BATTERY
       Part #: L-00108

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 11 Legend: FLASHER
       Part #: L-00046

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 7

    Legend 7

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__86 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: HEATED / MIRROR
       Part #: L-00160

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 3

    Legend 3

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__87 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 3 Legend: Lift Interlock (Symbol)
       Part #: L-00183


    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: FAST IDLE
       Part #: L-00006

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 6

    Legend 6

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__88 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Reading Light (Symbol)
       Part #: L-00184

    Switch 5 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 6 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 6 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 7 Name: Blank Switch

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__89 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Switch 5

    Legend 5

    Switch 7

    Legend 7

    Switch 8

    Legend 8

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__89 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 5 Legend: Defroster Fan (Symbol)
       Part #: L-00185

    Switch 6 Name: Blank Switch

    Switch 7 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 7 Legend: BOOSTER / PUMP
       Part #: L-00154

    Switch 8 Name: Black Switch Cap dual Orange Lens ON-OFF-ON
       Part #: C-00000-30-0V6D
    Documents: C-00000-30-0V6D Black Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 8 Legend: 2nd Rear Heater (Symbol)
       Part #: L-00187

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    12 Sw. 09 Ford w/System Display

    Faceplate

    Plate

    Switch 1

    Legend 1

    Switch 2

    Legend 2

    Switch 4

    Legend 4

    Power Center 1
    Plate Name: 12 Sw. 09 Ford w/System Display
       Part #: FAC-01619, Starcraft Bus by Forest River, Inc.
    Documents: RCT-01619-0__90 Starcraft Bus.pdf
    Cable 1 Name: Blank Cable
    Switch 1 Name: Black Switch Cap dual Orange Lens (ON)-OFF-(ON)
       Part #: C-00000-30-0V8D
    Documents: C-00000-30-0V8D Black Switch Cap dual Orange Lens.pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 1 Legend: Entry Door (Symbol)
       Part #: L-00181

    Switch 2 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 2 Legend: Interior Light (Symbol)
       Part #: L-00182

    Switch 3 Name: Blank Switch

    Switch 4 Name: Black Switch Cap single Amber Lens ON-OFF
       Part #: C-00000-20-0V1D
    Documents: C-00000-20-0V1D Black Cap single Amber Lens pdf
       RCT Switch Legend, Cap Type & Switch Body, Part Number System
    • C-00000-00-00 / Where C-00000=Switch Cap Nomenclature. 00=Switch Cap Type. 000=Switch Body Type
    OPTIONAL SWITCH CAPS.
    • 00 - Black Cap, single White Lens
    • 01 - White Cap, single White Lens
    • 02 - Grey Cap, single White Lens
    • 03 - Red Cap, single White Lens
    • 04 - Yellow Cap, single White Lens
    • 05 - Green Cap, single White Lens
    • 06 - Black Cap, single White Lens
    • 10 - Black Cap, dual White Lens
    • 12 - Grey Cap, dual White Lens
    • 13 - Red Cap dual White Lens
    • 14 - Yellow Cap, dual White Lens
    • 15 - Green Cap, dual White Lens
    • 16 - Black Cap, dual White Lens
    • 20 - Rubber, Black Cap, single Orange Lens
    • 23 - Rubber, Red Cap, single Orange Lens
    • 30 - Rubber Black Cap, dual Orange Lens

    OPTIONAL CARLING SWITCH BODYS.

    • 0V1D - Carling Switch Body ON-OFF, Maintained
    • 0V2D - Carling Switch Body, (ON)-OFF, Momentary
    • 0V4D - Carling Super Bright, Orange, ON-OFF, Maintained Locking
    • 0V6D - Carling Switch Body, ON-OFF-ON, Maintained
    • 0V8D - Carling Switch Body, (ON)-OFF-(ON), Momentary

       Switch 4 Legend: Heated Step (Symbol)
       Part #: L-00186

    Switch 5 Name: Blank Switch

    Switch 6 Name: Blank Switch

    Switch 7 Name: Blank Switch

    Switch 8 Name: Blank Switch

    Switch 9 Name: Blank Switch

    Switch 10 Name: Blank Switch

    Switch 11 Name: Blank Switch

    Switch 12 Name: Blank Switch

    Power Center 1 Name: Bus Power Center
       Part #: RCT-01760-00000
    Documents: RCT-01760-00000 Bus Power Center.pdf
    All images & Content Copyright 2022 R.C. Tronics, Inc.
    Order Product | About Us | Custom Electronics | Ambulances | Specialty Vehicles | Transit Buses | Products | Warranty | Equipment | Clients | Contact Us | Home
    Developed by Digital Hill Multimedia
